Cast Aluminium Hand Wheel - Offset Spoked

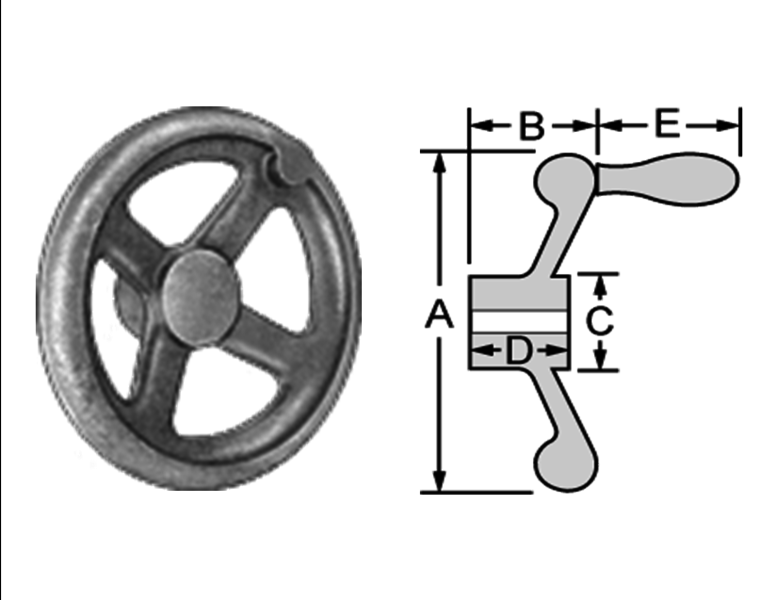

OFFSET SPOKED

Blank

Casting

Machined

Machined   w/Solid Handle

Machined w/Revolving Handle

Center Hole Dia.

A

B

C

E

P/N

P/N

P/N

P/N

(optional)

OW-4

AOW-4-MK

AOW-4-FS-1-MK

AOW-4-FR-1-MK

1/4"

4"

1 1/2"

1 1/8"

2"

OW-6

AOW-6-MK

AOW-6-FS-3-MK

AOW-6-FR-3-MK

5/16"

6"

1 7/8"

1 3/8"

3"

OW-8

AOW-8-MK

AOW-8-FS-4-MK

AOW-8-FR-4-MK

3/8"

8"

2 1/2"

1 3/4"

3 1/4"

OW-10

AOW-10-MK

AOW-10-FS-4-MK

AOW-10-FR-4-MK

1/2"

10"

3"

2 1/8"

3 1/4"

OW-12

AOW-12-MK

AOW-12-FS-7-MK

AOW-12-FR-7-MK

5/8"

12"

3 1/4"

2 1/2"

4 1/8"
