Clamping Handles
|

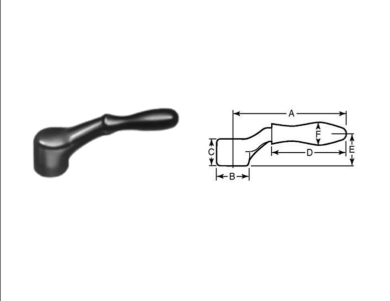

CLAMPING HANDLE |
|||||
|
Blank Casting |
A |
B |
C |
D |
|
|
P/N |
|
|
|
|
|
|
H-1 |
3 7/8" |
1 1/8" |
3/4" |
2 1/4" |
|
|
H-2 |
4 1/2" |
1 1/8" |
1 1/8" |
2 5/8" |
|
|
H-3 |
5" |
1 1/4" |
1 1/4" |
2 7/8" |
|
|
H-4 |
5 3/4" |
1 1/2" |
1 3/8" |
3 1/2" |
|
Made in the USA, ELCO H series clamping handles feature an offset design and are available as cast blanks for your own machining.
See the table above for dimensions and part numbers.
Contact us for pricing and availability.
